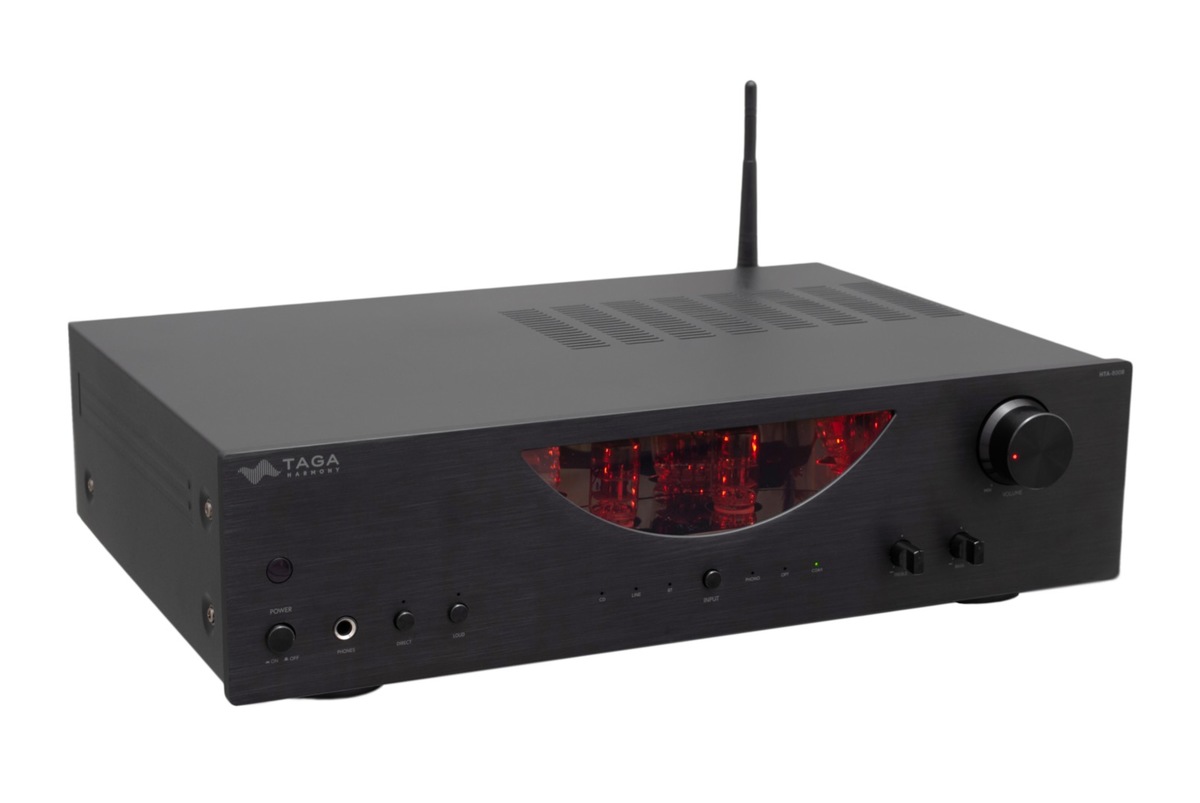

The HTA-800B combines the analog sound of tubes with the power of transistors to give the best sound at the price!

KEY FEATURES

​​​​​• Sleek aluminum front panel design is suitable for most interiors.
• Hybrid design utilizing two 6H3N vacuum tubes in the preamp section and four Toshiba transistors ensures a very warm, linear and lifelike sound with high dynamic presentation.
• High-performance and high-power toroidal 230W transformer provides stable, constant and immediately-available energy at any volume level and allows to properly drive different types of speakers.
Bluetooth® - to wirelessly stream music from smartphones, tablets or computers.
3 analog inputs including a turntable (MM cartridge) input so you can enjoy music from your favorite vinyl records.
Digital Optical and Coaxial inputs based on a premium high-resolution 24bit / 192kHz DAC to connect a range of digital audio devices (CD / DVD / Blu-ray players, video game consoles etc.).
Preamplifier output dedicated for an optional external power amplifier, a powered subwoofer or active speakers.
RCA sockets made of high-end solid machined brass.
• The high-end class, gold-plated speaker terminals offer almost lossless audio signal transmission to the speakers.
High-fidelity headphone preamplifier for those who prefer discrete listening.
Aluminum remote controller.
• IEC C14 power inlet and a removable Schuko-IEC C13 power cord an option to upgrade your system with a premium audiophile power cable in any time.



Design Hybrid amplifier
Class A/B
Vacuum tubes 2 x 6H3N
Power output / impedance 2 x 50W 8ohm
2 x 80W 4ohm
DA converter 24bit / 192 kHz
MS4344
Wireless connectivity Bluetooth® v4.0
Digital inputs Optical, Coaxial
Analog inputs CD, Line

Phono (MM)
• Input impedance: 47KOhms/120pF
• Gain: 40dB
• Input voltage: 5mV @ 1kHz
• THD: <0.5%
• SNR: 72dB
Analog outputs RCA Pre-Out
Headphone output Impedance: 16ohm
Output power: 150mW
Frequency response 20Hz - 20kHz (±0.5dB)
Total Harmonic Distortions 0.5%
Signal/Noise ratio 80dB
Features / accessories Dimmer - tube window backlight
Mode: Direct, Loudness

Regulation:
Bass 100Hz ±8dB
Treble 10kHz ±10dB

Aluminum remote controller
Antenna Bluetooth®
Removable Schuko-IEC C13 power cord
AC power / power consumption 220-240V 50/60Hz, 230W (max)
Dimensions (H x W x D) 11.5 x 43 x 33 cm
(incl. knobs, feet and speaker terminals)
Weight 8.2 kg / pc.
Colours
Black (aluminum) Black (aluminum)



Hybrid amplifier

What does it mean and why does TAGA Harmony use this approach?

Hybrid means a combination of two different techniques to create an amplifier in one device: the World of tubes and the World of transistors.

TAGA Harmony amplifiers use vacuum tubes in the preamp section and transistors in the power stage. This results in tube, soft and analog-like sound character and at the same time high dynamics and power provided by transistors, which is usually a weak point of pure tube designs.

The sound of TAGA Harmony hybrid amplifiers is not only silky and rich but also powerful and dynamic. In addition, hybrid amplifiers compared to pure tube amps have better abilities to properly drive different kind of speakers.


After being turned on a hybrid amplifier requires to warm up its tubes to reach its full sound capabilities – it usually takes from 5 to 15 minutes depending on model and room temperature.

User manual (04-2022) Download

2022-11-22
6H3N tubes - what replacements can be used?

One of the following tube models may be used in this device: 5670, ECC42, 6N3.
