Unrivaled Bass, Unprecedented Precision.

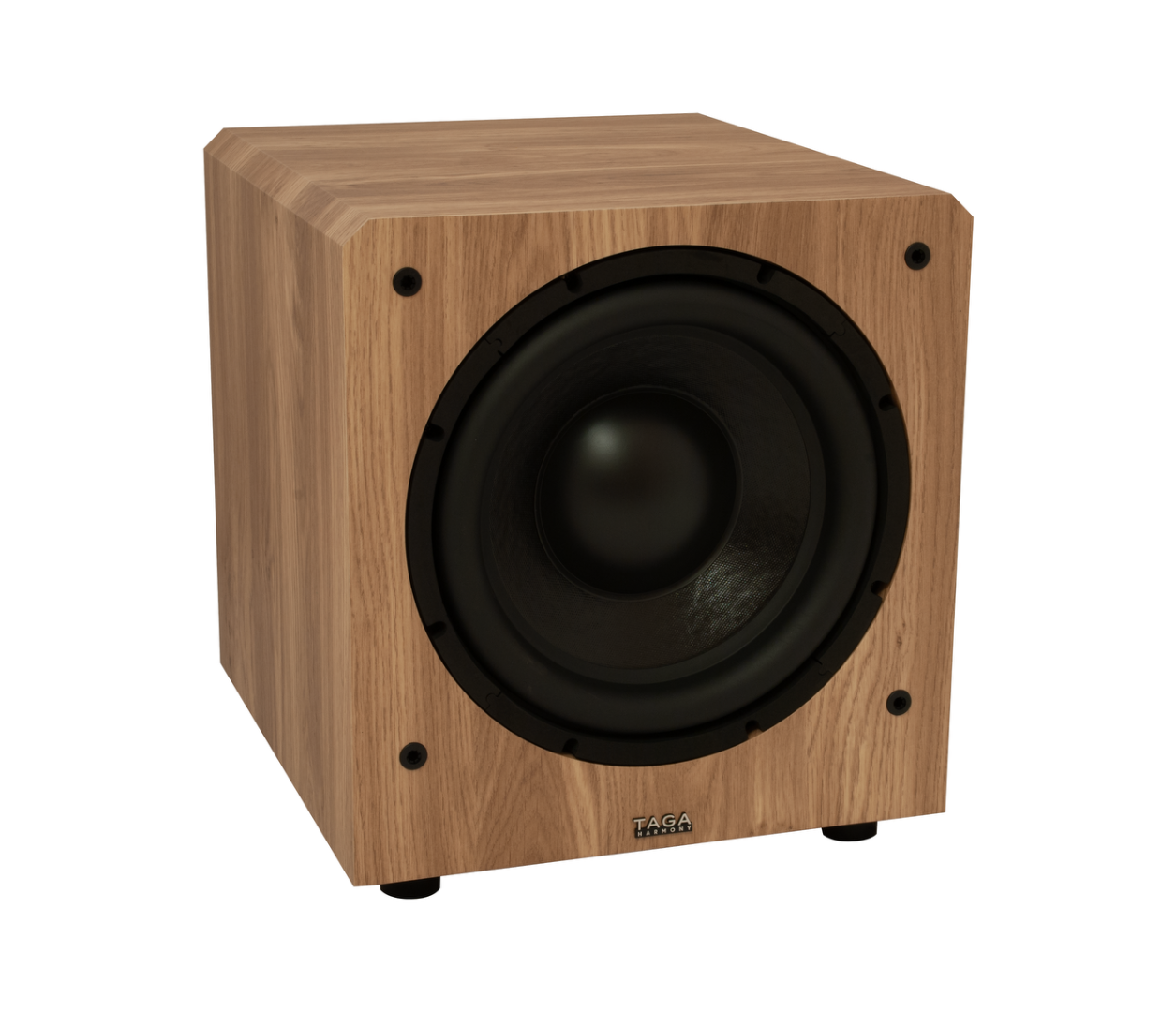

The TSW-212 SE is an advanced active subwoofer, featuring a powerful 12-inch single driver, a robust built-in high-current amplifier, and a rear-mounted slotted bass port. The entire electronics section, including the amplifier, is precisely based on our premium Platinum SW-10 v.3 subwoofer, ensuring top-tier audio performance.
The amplifier delivers an impressive 240 watts of power in Class A/B and is characterized by its high efficiency and excellent current drive. This translates into remarkably low distortion, a smoother and flatter frequency response, much faster amplifier operation, and significantly reduced operational noise. An integrated clipping limiter maintains optimal performance and ensures the safe operation of both the amplifier and the woofer, even at extremely high-volume levels.
The "SE" (Special Edition) version features higher-grade components (including capacitors), a heavily modified woofer, and a redesigned internal cabinet structure that provides increased internal volume and enhanced stiffness.
This re-engineered bass driver is capable of operating within higher amplitude ranges, allowing for a quicker and more precise response to any changes in the audio signal's structure.
Removable Schuko-IEC C13 power cord offers the flexibility to upgrade your system with a premium audiophile power cable at any time, further enhancing the overall sound quality.
The TSW-212 SE subwoofer delivers exceptionally powerful and deep bass, marked by staggering definition, precise localization, and dynamic range previously unmatched at this price point.
It is unequivocally the absolute best buy in active subwoofers within its class!
| Design |
Active subwoofer, 1 driver TLIE enclosure |
| Amplifier power |
240W RMS 750W Dynamic Peak Class A/B, THCA |
| Frequency response | 23Hz - 200Hz |
| Bassreflex | Rear, single, slotted |
| Bass driver |
305 mm (12”), polypropylene THAW, TSAC 4ohm |
| Crossover filter frequency | 30Hz - 200Hz (variable) |
| Phase regulation | 0 - 180° (variable) |
| Inputs |
1 x Low Input (L/R) 1 x SUB (LFE) |
| Features / accessories |
Auto On / Off Y type RCA-RCA Subwoofer Cable Removable IEC power cord |
| AC power / power consumption |
220V-240V (power selector to 110V-120V) 50/60Hz, 250W <0.5W (Standby Mode) |
| Dimensions (H x W x D) | 40.2 x 37 x 44.8 cm (incl. grill & feet) |
| Weight | 21 kg / pc. |
Vinyl laminates
Black

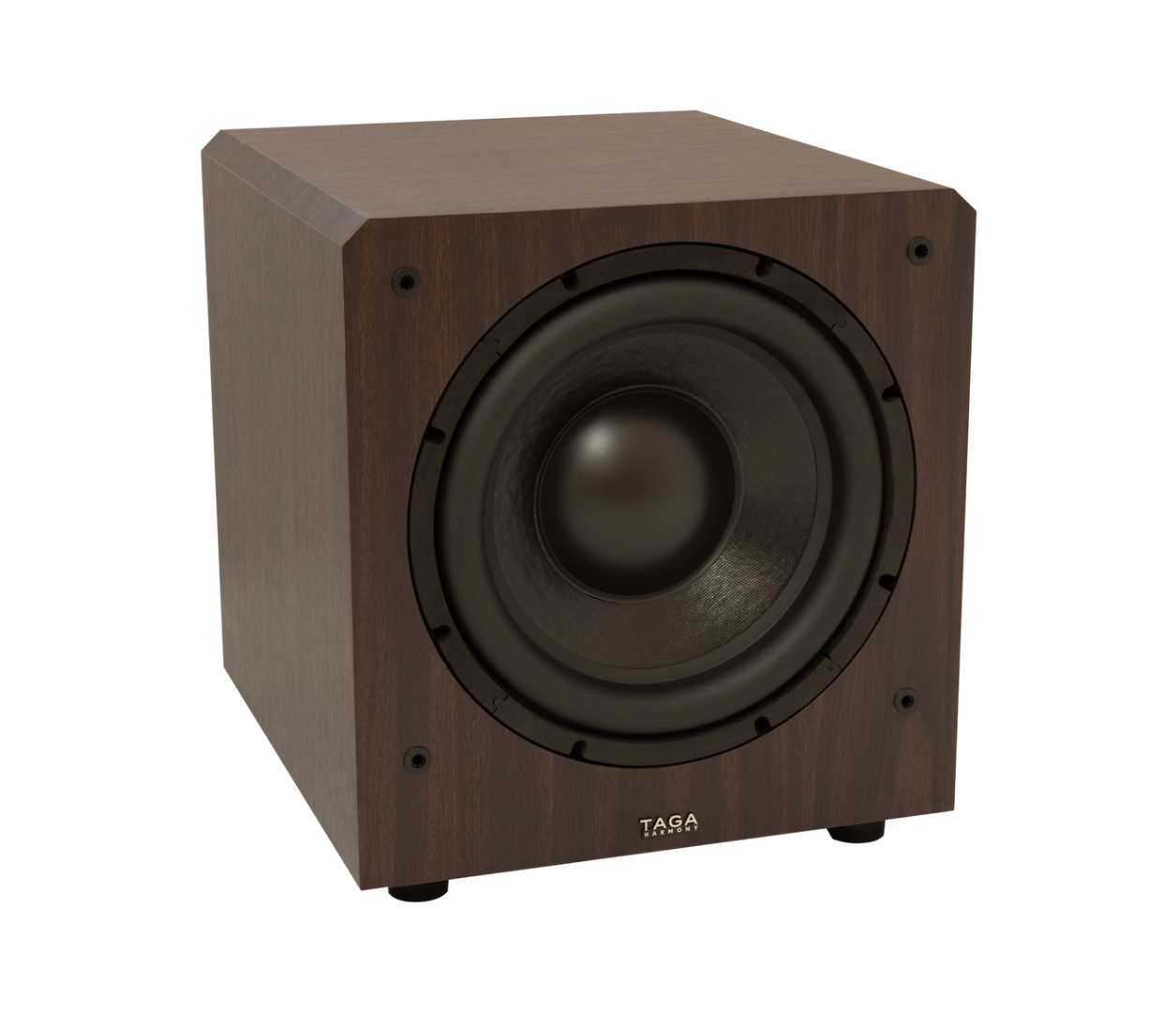

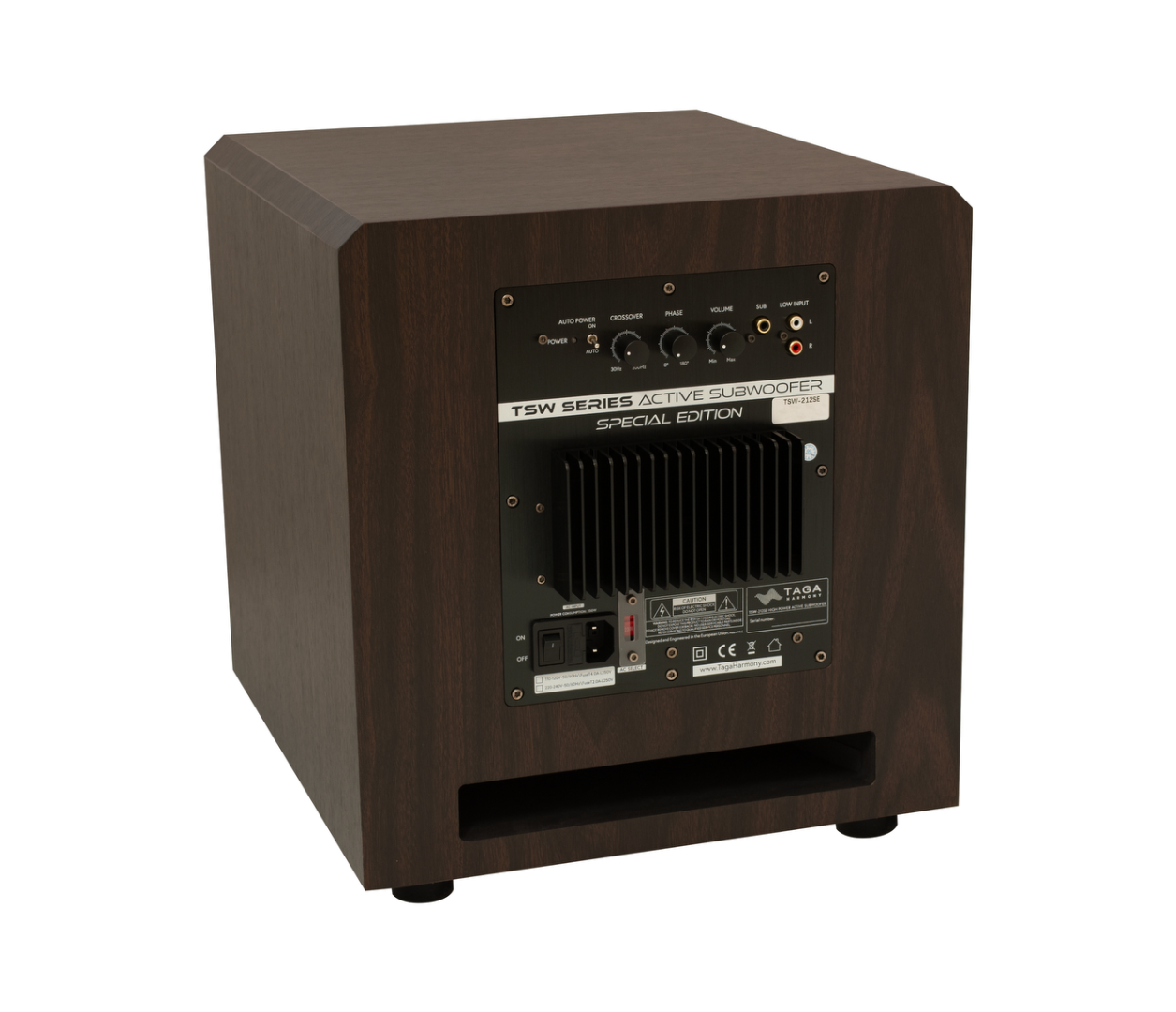

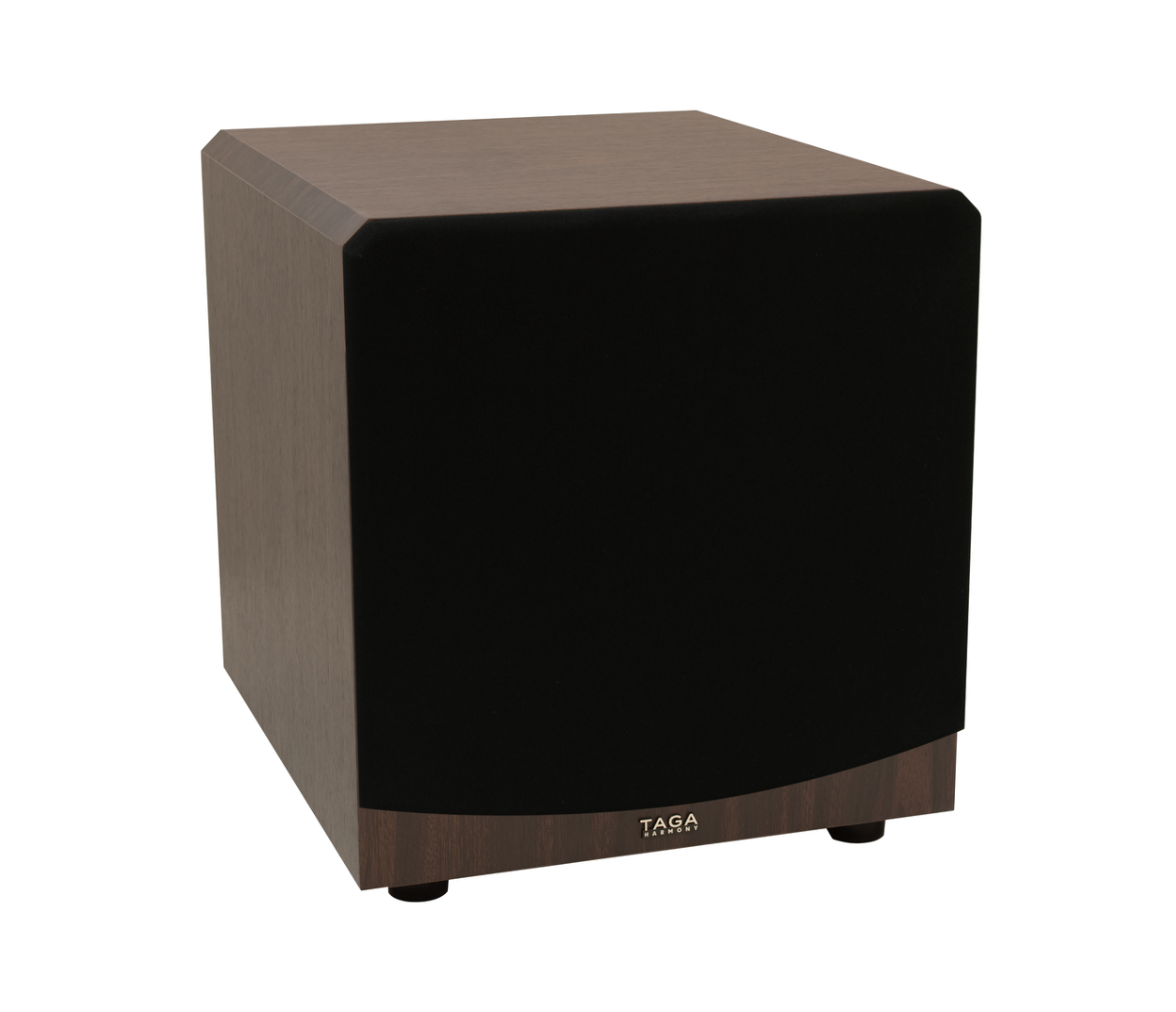

Modern wenge

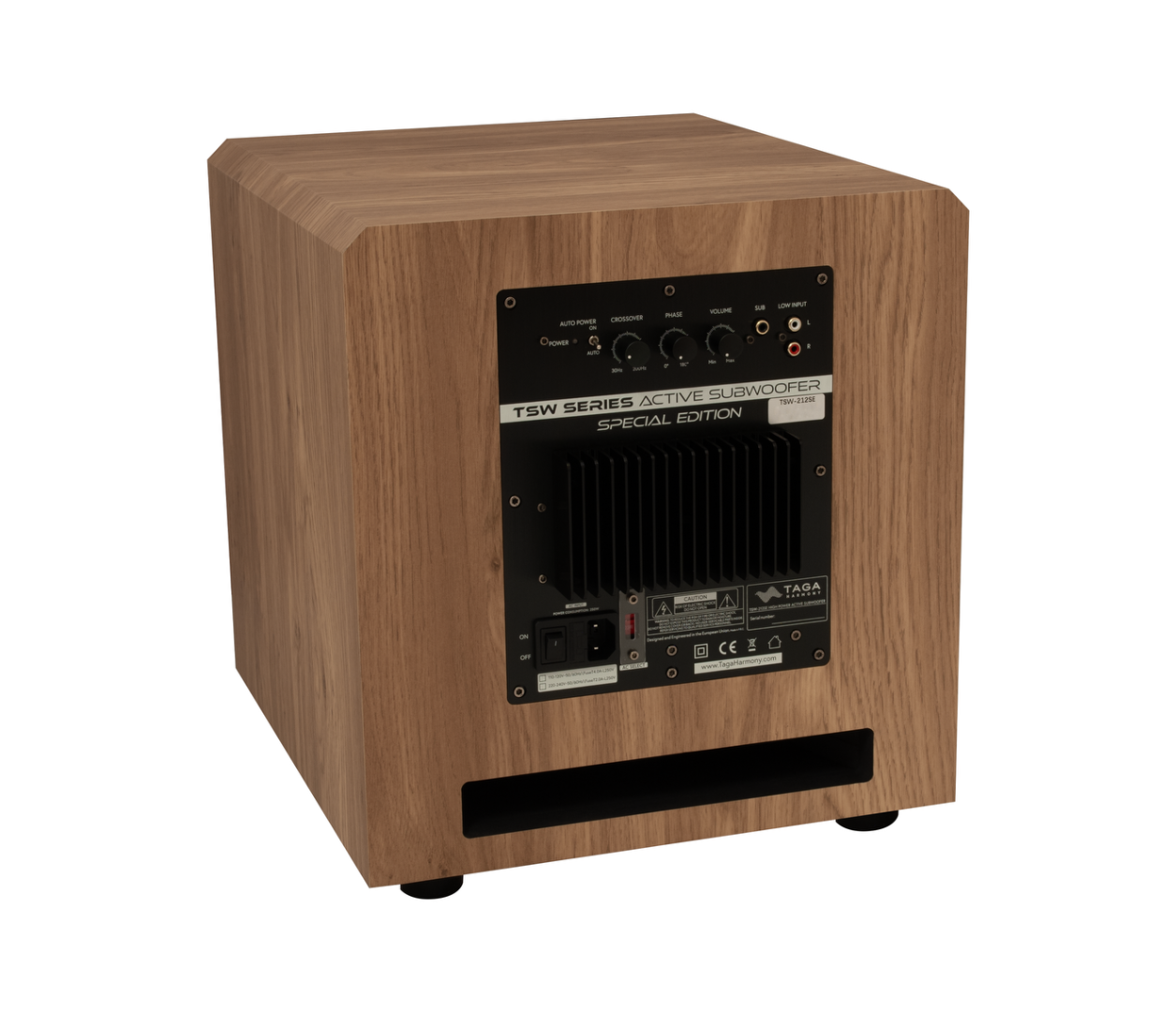

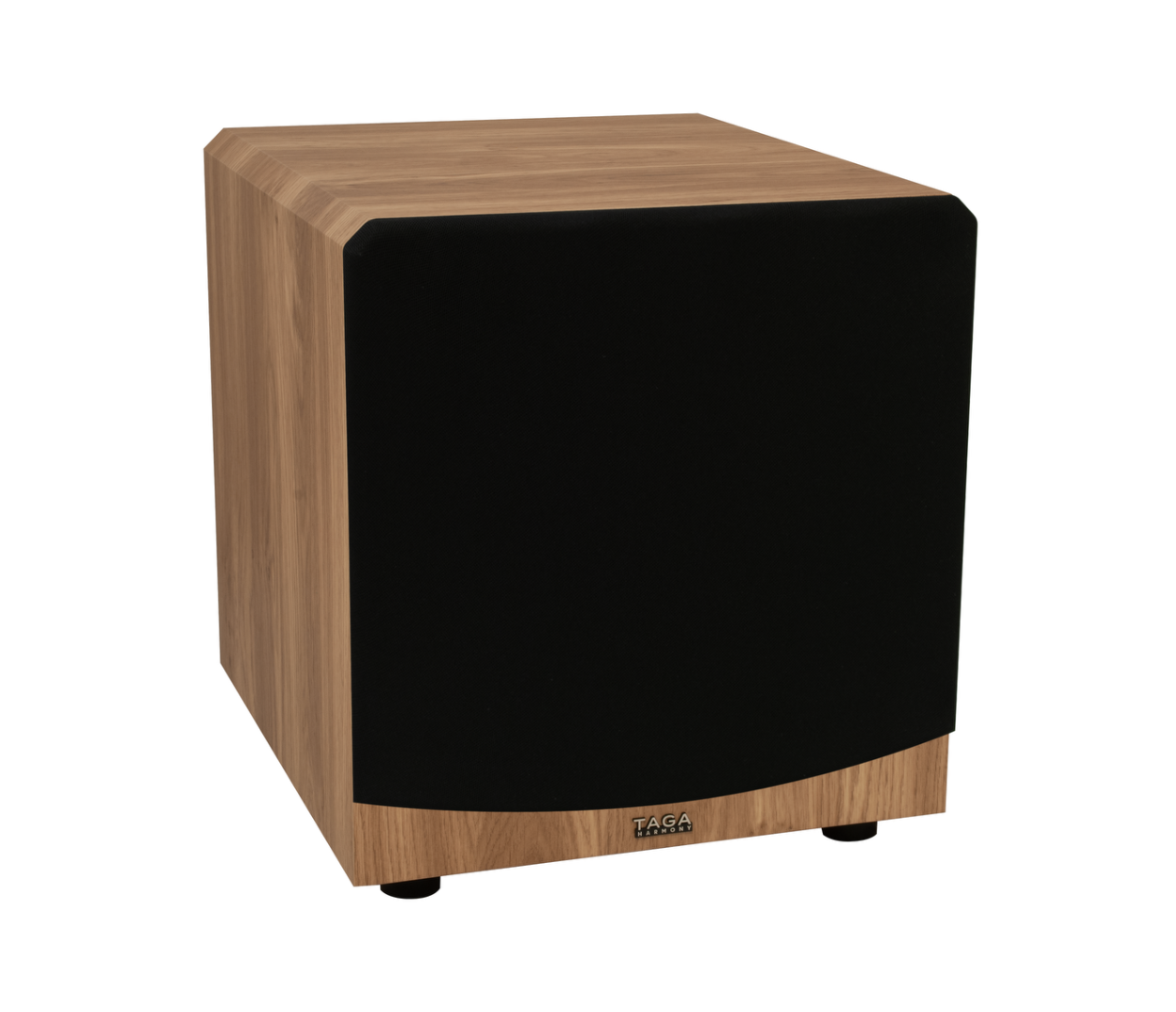

Oak
Walnut

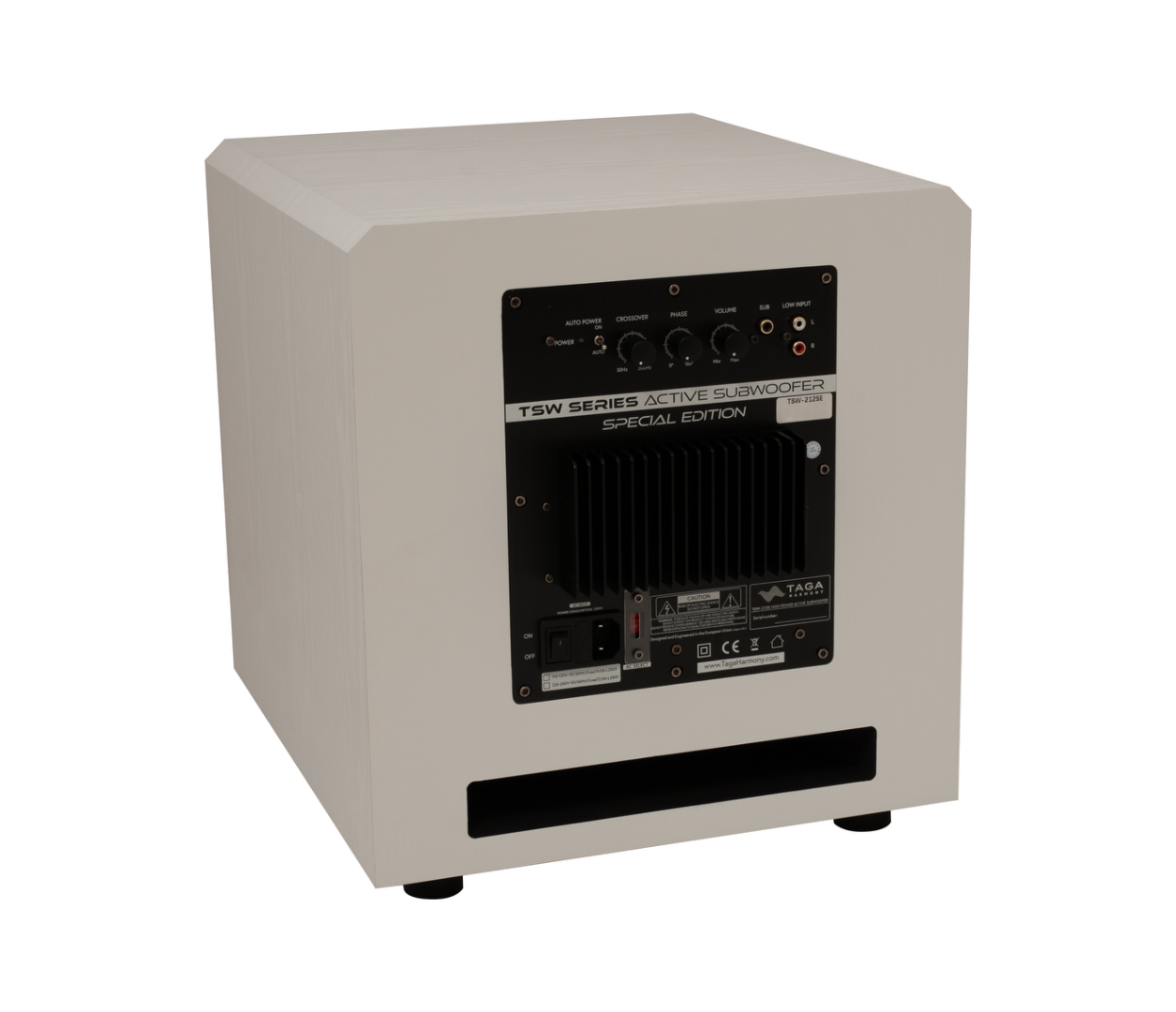

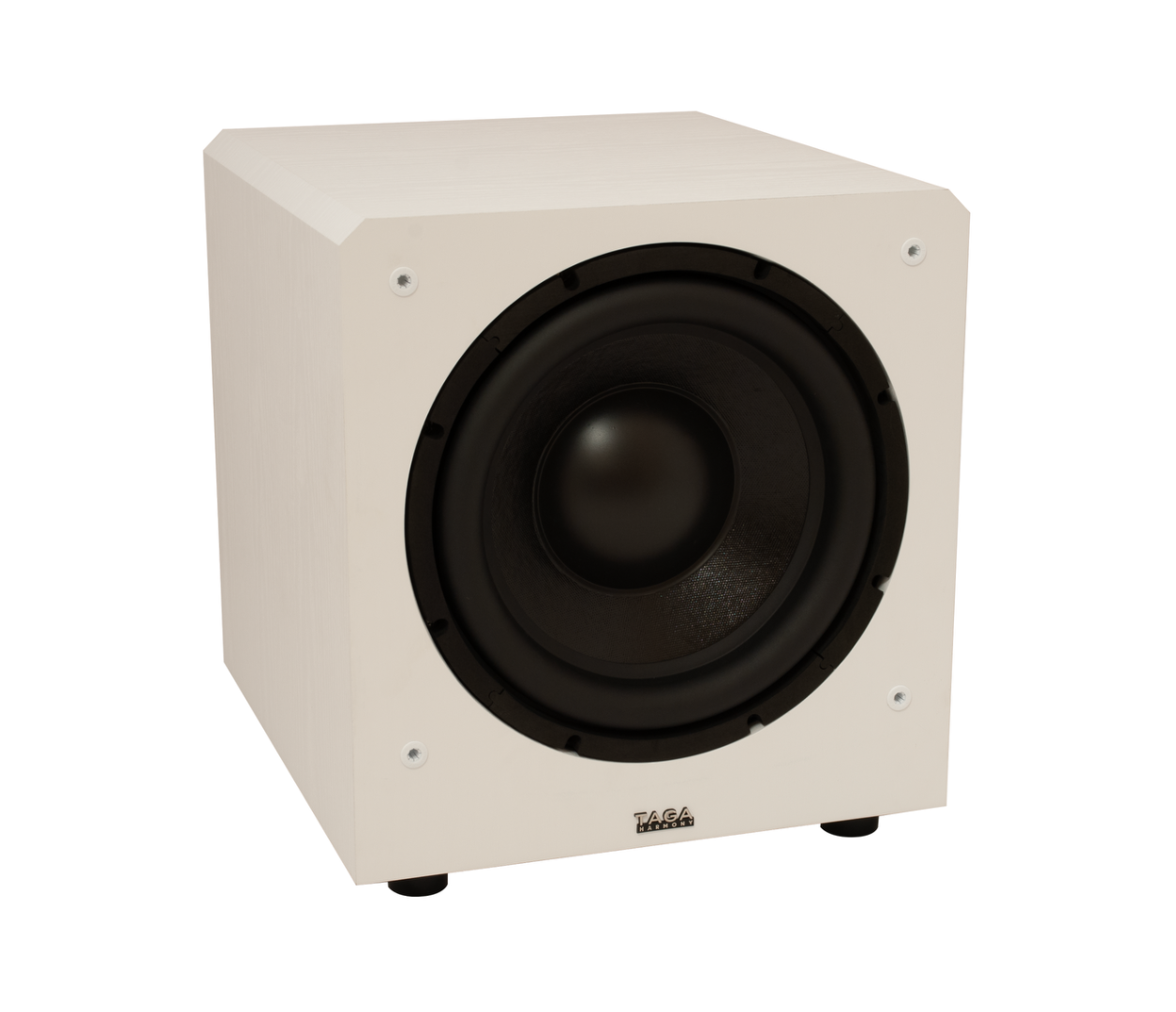

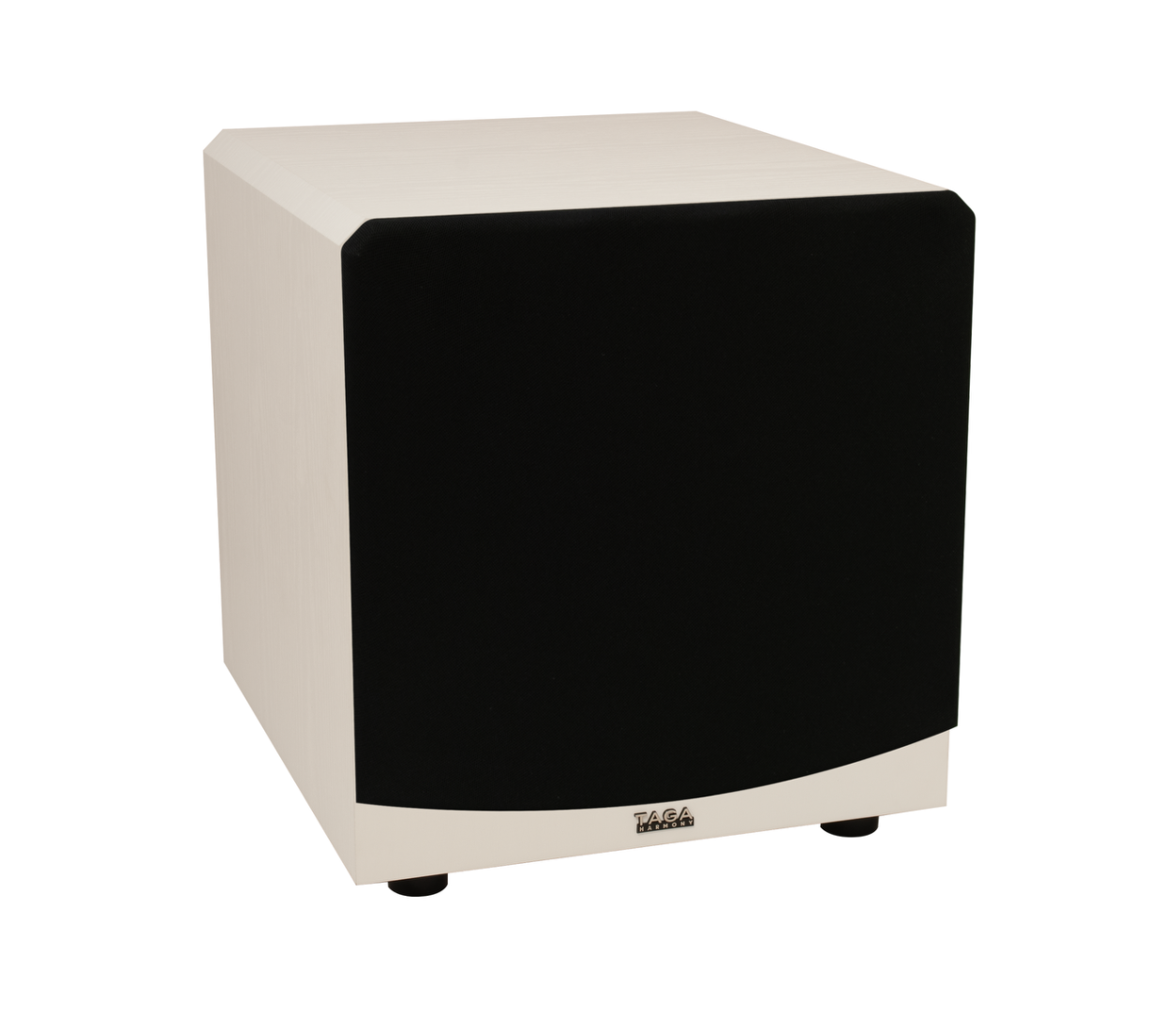

White
CABINET
A subwoofer cabinet design and built-quality is one of the most critical elements influencing sound performance.
We have developed TLIE (Taga Low Interference Enclosures) cabinets to increase stiffness and limit any unwanted resonances of the enclosure.
The TLIE cabinets are built with high density and quality MDF boards and stand on solid feet which provide good isolation from the floor.
The beveled edges not only look modern and eye-catching but also play a significant role in lowering unwanted vibrations, diffraction, turbulences and standing waves effect, which can negatively affect subwoofer’s sound performance.
Acoustic damping material used inside enclosures eliminates problem of internal standing waves
Carefully selected high quality vinyl finishes are very durable, elegant, imitate natural wood texture and are very pleasant in touch. The vinyl finishes are neatly applied to cabinets using precise machinery to provide the best looks.
BASS DRIVER
1. T-yoke
2. Oversized ferrite magnet
3. Top plate
4. Terminal
5. TSAC rigid metal chassis with anti-oxidation surface process
6. Spider
7. Round wire copper voice coil
8. Polypropylene cone and rubber surround
9. Polypropylene dust cap
10. EVA gasket
THAW - Taga High Amplitude Woofer offers extended cone excursion, which results in increased speed and range. Bass is fast, strong, low and dynamic.
TSAC – Taga Super Air Cooling used in the woofer helps quicker and more effectively dispersion of internal heat to support high power and volumes.
BASSREFLEX
Low-turbulence and high-velocity rear slotted port provides exceptional dispersion of low frequencies and are located very close to the floor.
AMPLIFIER
THCA - Taga High Current Amplifier offers huge amounts of raw power, and oversized, high-performance heatsink quickly dissipates generated heat, increasing efficiency and range of amplifier.
High Current Amplifier utilizes very well designed boards layout and high quality components to provide reliability and the highest possible bass quality.
An integrated clipping limiter maintains the best performance and safe operation of the amp and woofer even at extremely high volume levels.
High quality toroidal power transformer provides stable energy which is available at all power levels.
